產品詳情
詳細的產品描述

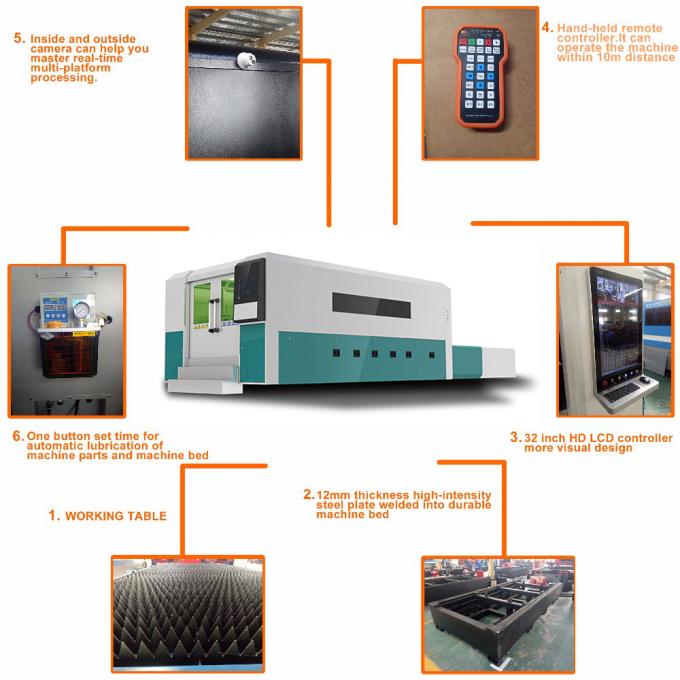

| 產品名稱： | 3015 Fully Enclosed Exchange Table Fiber Laser Cutting Machine From 1kW To 4kW | 激光功率： | 1kW To 4kW |
|---|---|---|---|
| 激光波長： | 1080nm | 工作區域： | 3000 *1500毫米 |
| 切割頭： | Raycools | 冷水機： | S＆A |
| 數控切割系統： | AHEADCUT |
產品描述
產品規格
| model | 1530 |
| 激光波長 | 1080nm |
| 切割厚度 | 0.2-16mm |
| 激光輸出功率 | 1000W |
| 最大加工範圍 | 3000 * 1500mm |
| 機器驅動模式 | 進口齒條齒輪和pinon驅動器 |
| Y X.軸定位精度 | ±0.01毫米 |
| XY軸重複定位精度 | ±0.01毫米 |
| 供電方式 | 380V / 50Hz |
| 最大切割速度 | 45米/分鐘 |
| 最小切割線寬 | 0.02毫米 |
| 冷卻模式 | 3P水冷卻 |
Aheadcut usa cnc controller
This system use US cutting edge(Aheadcut)CNC cutting system, international leading architecture based on EtherCAT industry bus,data transmission fast security and stability, is widely used in various precision control and processing areas.WINDOWS as a platform, with open structure, simple operation, easy to learn, is the biggest difference between CNC system and the traditional number Control system. The system provides machine parameters, PLC program, user-friendly according to their needs to configure and adjust Test, to achieve complex functional requirements of the machine. Basic hardware configuration:
CNC control unit(industrial control computer);
Interface module(I/O module and axis control module) ;
NC operation panel, wireless operation box;
Relative standard cable (display cable, operation cable, power supply wire) .
Basic software configuration:
CNC software operation platform(XP/WIN7)
Raytools cutting head
Cutting head using RAYTOOLS Swiss designed Fiber laser cutting dedicated cutting head to ensure high accuracy and efficiency for cutting. The cutting head is equipped with a non-contact capacitive sensing device. Can be achieved very stable Z-axis automatic tracking function, eliminating the influence of cutting due to asperous plate, and then improve the qualification rate of products. Laser cutting machine is equipped with focus lens , to meet the customers needs of cutting plate. Lens replacement using drawer type, the entire replacement process very convenient and fast. Optical system has the advantages of high efficiency, stability, calibration, maintenance and so on, the entire optical system is protected by clean positive air to ensure that the optical lens and nozzles are not contaminated.
